Wired Integration Guide

Introduction

Pine Labs' Plutus, also referred as Plutus payments in this document is an electronic draft capture (EDC) software that provides a point-of-sale solution with various payment types like:

• Credit / debit EFT transaction processing
• Gift Voucher/Card redemption
• Mobile Wallet
• Other non-cash payment processing functions

It combines the security of an EDC terminal-based system with the feature-richness, power, flexibility, and ease-of-use. Plutus integrates with POS hardware available on PC such as a magnetic card reader and receipt printer.

It supports the full range of EDC transactions for retail, lodging, and restaurant scenarios in addition to standard EDC operations such as settlement and remote parameter download. Transactions are authorized on high-speed TCP/IP connectivity and transactions are secured through 3DES-based strong encryption.

Mode of Operations

Plutus application can be used in either of the 2 following modes of operation:

Standalone Mode

• Transactions initiated through card swipe or Insert Chip
• Transaction amount is manually entered
• On successful authorization, Plutus prints charge slip

Integrated Mode

• Transactions are initiated through programmatic method call from external POS/billing application with the transaction amount as a parameter sent to Plutus
• Card is entered (swipe or Insert Chip) in Plutus or the card details are passed to Plutus
• On transaction completion, Plutus passes response data to external application and prints charge slip for successful authorization

To use Plutus in an integrated mode, this document provides all the necessary details that can be used by ISVs to integrate their applications.

Integration Overview

In integrated mode, Plutus payments (credit / debit EFT transaction processing, Gift Voucher/Card redemption, and other such non-cash payments processing) transactions can be launched directly from external billing / retail applications - avoiding the need for dual amount input. Also the transaction response details are passed to the external application. Transaction completion can be used to automatically link the EFT payment transaction with the billing sale transaction for reconciliation.

For enabling Plutus to work in integration mode, external billing / retail applications need to integrate with Plutus for programmatically invoking Plutus authorization methods.

At time of application installation, the Plutus setup program installs and registers a COM-based bridging component on the PC.

The bridging component can be invoked programmatically from an external application for launching a Plutus payment transaction authorization request and for exchanging information between the external application and Plutus. Post completion of transaction, Plutus passes transaction response back to the external application. For successfully authorized transactions, this response includes transaction approval code and other details. These details can be stored by the external application to link the EFT payment transaction with the billing sale transaction.

Plutus System Requirements

System requirements for using Plutus payment application:

Base System

• x86-based PC / POS system
• Supported Operating Systems:
  • Windows 2000™
  • Windows XP™
  • Windows 2003 Server™
  • Windows 7
  • Windows 8
  • Linux
  • Any JAVA based platform
• 40 MB free hard disk space

Network Connectivity

• Connectivity to Pine Labs host

COM Integration Requirement

For enabling use of Plutus in integration mode, external applications will need modifications in their source code (detailed in rest of the document) for programmatically launching Plutus transactions. Following are the requirements for external applications that be integrated with Plutus:

• Windows™-based: The application must be running on Windows operating system
• COM-support: Should have the ability to programmatically instantiate COM components and invoke COM methods

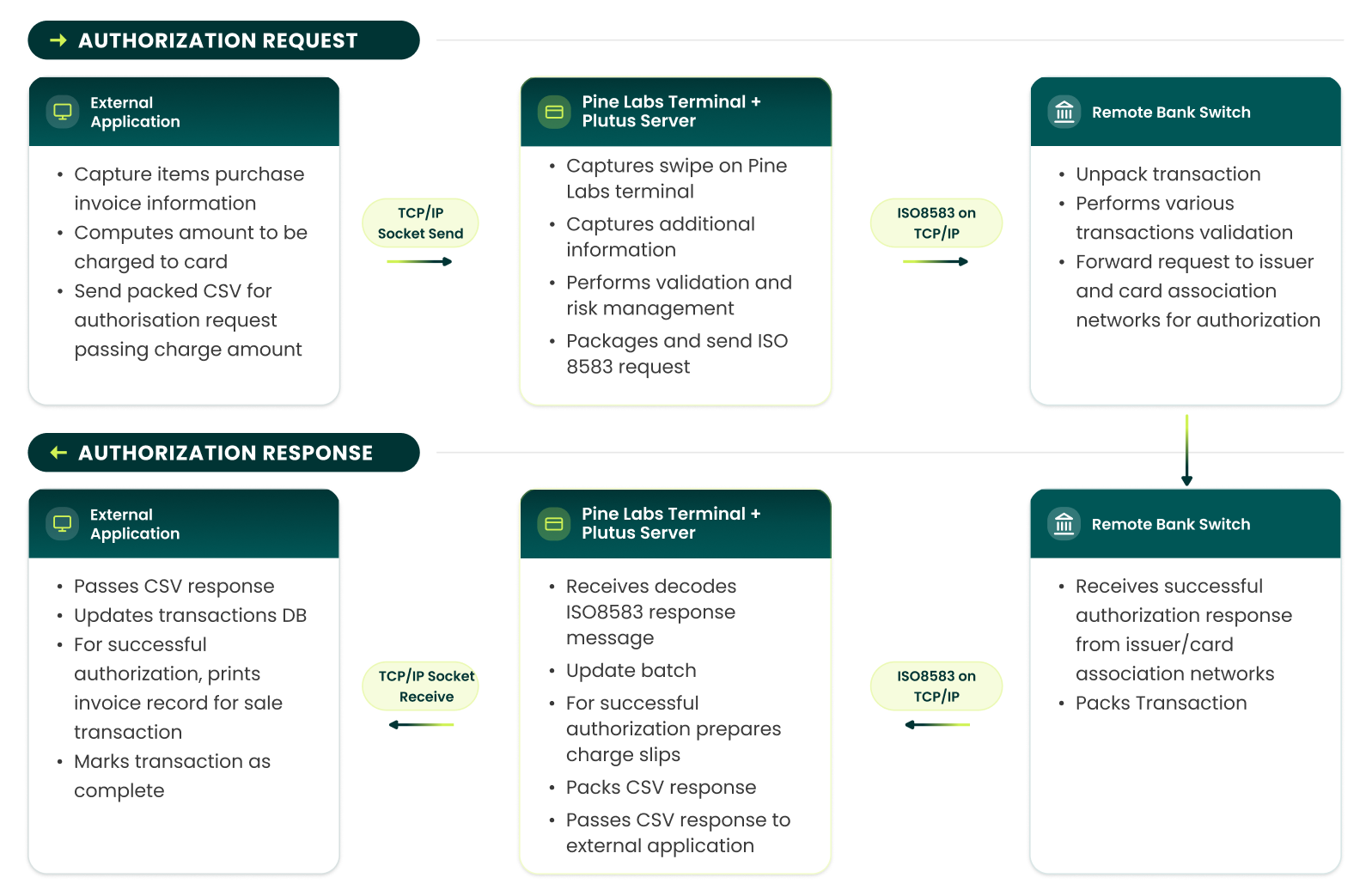

Transaction Process Workflow

Following diagram describes the process workflow followed for sale transactions in integrated mode.

Integration Development Process

Following are the typical steps to be followed for integrating Plutus application with your application:

1. Verify Requirements

   Verify system and integration requirements for Plutus.

2. Identify Integration Points

   Identify code segments in your application code where Plutus payments need to be integrated. This is typically at a stage in the application's purchase / checkout workflow where amount to be charged to a customer has been computed and customer has opted for credit / debit card as the payment instrument.

   (See the section "Identifying Plutus Payments in Billing POS" in the later part of document)

3. Database Schema Changes

   Identify and implement DB schema changes required (if any) for storing authorization response data from Plutus. Response data fields are specified later in this document.

4. Install Developer Kit

   Install Plutus Developer Kit on development PC. This will install and register a test bridging COM component that can be used for carrying out development.

5. Implement Code Changes

   Implement code changes in your application to:

   • Dynamically instantiate Plutus bridging COM component
   • Invoke authorization request method through Plutus COM API and pass amount to be charged to card
     Note: For split-sale transactions, pass only the amount that needs to be charged to credit / debit card by Plutus
   • On method return, inspect return values from Plutus COM API
   • If transaction is declined / unsuccessful, take appropriate action as per your application business process
   • If transaction is approved, store response fields in DB for reconciliation and mark transaction as complete
6. Test with Test Component

   Test application code with Plutus test component. This will return a fixed response and will not launch a live transaction.

7. Install Production Application

   Install Plutus application and POS peripherals. Plutus installation will replace the test COM component with the actual bridging COM component supplied in Plutus application installer.

8. End-to-End Testing

   Test integration end-to-end system with Plutus test Host and with Pine Labs Terminal (card swipe and printing).

Identifying Plutus Payments in Billing POS

Plutus identifies the type of Plutus Payments (tender) invoked by a transaction type parameter (lTxnType defined later in this document). In order to provide flexibility for the merchants to accept new payments type (e.g. mobile wallets and gift vouchers etc.) your application may already provide/have a mechanism for creation of new tender modes. To integrate with Plutus for processing of such new tender modes, please provide a graphical way to set a flag (isPlutusTender) which will inform your application to invoke Plutus programmatically and corresponding transaction type (lTxnType). Your application should save such flag (isPlutusTender) and transaction type for each Plutus processed tender to invoke Plutus API.

Transaction Integration

For instantiating and invoking Plutus COM API methods, use the IDL and/or TLB file supplied with the Plutus Developer Kit. For more information on technical details of COM API invocation for your programming language, check/review the documentation of your platform. The Plutus bridging COM component can be dynamically created using the following information:

After instantiation of PlutusExchange component, authorization request can be launched by invocation of PL_TriggerTransaction()method in PlutusExchange API. This method call is a synchronous blocking call and your application should wait up to 60 seconds for this call to time-out.

This method call accepts transaction input request parameters in the lpszTransDatain-out parameter. Post method completion, the values of these parameters is updated with the transaction response string.

Data Interchange Formats

For specifying the transaction request type to Plutus application, the lTxnType parameter on PL_TriggerTransaction() method call is used. The value of some such parameters are as defined below:

TRANSACTION TYPES

Parameters

For exchanging request / response data between the Plutus and external application, lpszTransData in-out parameter in PL_TriggerTransaction() method call is used.

These values of this parameter are in comma-separated value (CSV) string format. This string will consist of field values as mentioned in tables below and separated by commas.

REQUEST STRING

Sample Request Strings

For Sale Transaction of amount of Rs 99990.00

TX12345678,9999000,,,,,,,

Card Swipe will be accepted by Plutus Application.

For Sale Transaction (Manual Entry): Please note, special permission from acquirer is required for accepting manual entry of cards.

TX12345678,9999000,01,4129057681239198,0905,,FALSE,,,,

For Refund Transaction: Please note, special permission from acquirer is required for performing refund transactions.

TX12345678,9999000,01,,,,,,,,

For Adjust Transaction:

TX12345678,9999000,01,,,000012,,,,,

For Void Transaction:

TX12345678,9999000,01,,,000013,,,,,

For Pine 360 Void Transaction:

TX12345678,9999000,51,,,000013,,,,,

For Pre Auth Transaction:

TX12345678,9999000,01,,,,,,,

For Sale Complete Transaction:

TX12345678,9999000,01,,,000014,,,,,

For Loyalty Award Transaction: For Loyalty award on Rs 990.00

TX12345678,99000,,,,,,,,,

For Loyalty Redeem Transaction: For Redeeming 99000 points

TX12345678,99000,,,,,,,,,

For Loyalty Balance Enquiry Transaction:

TX12345678,,,,,,,,,,

For Gift Card Load Transaction: For loading Rs 990.00 on the card

TX12345678,99000,,,,,,,,,

For Gift Card Redeem Transaction: For redeeming Rs 990.00 from the card

TX12345678,99000,,,,,,,,,

For Gift Card Balance Enquiry Transaction:

TX12345678,,,,,,,,,,

For Pine360 Prepaid Card/Gift Voucher Load Transaction: For loading Rs 990.00

TX12345678,99000,,,,,,,,,

For Pine360 Prepaid Card/Gift Voucher Redeem Transaction: For redeeming Rs 990.00

TX12345678,99000,,,,,,,,,

For Pine360 Prepaid Card/Gift Voucher Balance Enquiry Transaction:

TX12345678,,,,,,,,,,

For Fetch Loyalty number Transaction:

TX12345678,,,,,,,,,,

For Reward Redemption: Invoice amount of Rs 99990.00

TX12345678,9999000,,,,,,,

Card Swipe will be accepted by Plutus Application.

For Reward Void: Invoice amount of Rs 99990.00, EDC

T1/1234567890,100,,,,,Operator,,,,9001,116

For Sale with reward Transaction: with sale amount Rs 99990.00 and reward amount Rs. 8888.00

TX12345678,9999000,,,,,,,,,,,,888800

Card Swipe will be accepted by Plutus Application.

For Sale with cash Transaction: with sale amount Rs 99990.00 and cash amount Rs. 8888.00

TX12345678,9999000,,,,,,,,,,,,888800

Card Swipe will be accepted by Plutus Application.

For settlement: Transaction type for settlement will be 6001. All fields will remain empty

,,,,,,,,,,,

Passing this as the request string to PL_TriggerTransaction() method will initiate an authorization request transaction for the particular transaction type. On the charge slip, Plutus will include the following string:

BILL NUM: TX12345678

RESPONSE STRING (IN CASE OF INDEPENDENT TRANSCATIONS)

Following is the format of the lpszTransDataout-parameter that can be expected after PL_TriggerTransaction() method completes. Plutus will set these values.

Field 31 will contain Batch Summaries of all batches in CSV format mentioned below:

    Batch Name (HDFC), Acquire Code/host type, TID, MID, Credit Count, Credit Amount, Debit Count, Debit Amount|
    Batch Name (AXIS Credit), Acquire Code, TID, Credit Count, Credit Amount, Debit Count, Debit Amount|
    Batch Name (AXIS Debit), Acquire Code, TID, Credit Count, Credit Amount, Debit Count, Debit Amount|
    Batch Name (Loyalty), Acquire Code, TID, Credit Count, Credit Amount, Debit Count, Debit Amount


Tag value pair described in response CSV field 27:

If Plutus sets the value in Field 29 then this amount should be used as the processed amount for tender else use the original amount passed while Plutus API invocation.

Sample Response Strings

Sample response string (with first 22 fields) for an approved transaction:

105,"7261A9","APPROVED"," ************2802","0406","AMITMOHAN","VISA",11,2,"30000001",1,"PROCESSED","Acquiring Bank 1","000100090015607"," 624615343002",1,1," HPCL Area 18"," Kamala Mills"," Noida","1.51 ICICI BANK",02

Sample response string for Reward Redemption transaction:

TX12345678,"7261A9","TRANSACTION SUCCESSFUL"," ************2802","0406","RamSingh","",78,502,"30000001",0,"PROCESSED","LOYALTY REWARD","000100090015607"," 624615343002",1,1," HPCL Area 18"," Kamla Mills"," Noida","v.01.00.00",81,"10000","400.00","1000000","40000.00","","","","","","02012011","210403",12345,9002,105

Instant Discount - Response CSV:

"","00","APPROVED","************2802","XXXX","CITI T%34 C 2$","MASTERCARD",86,33,"78784454",0,"PROCESSED","HDFC BANK"," ","000000000020",1,1,"LOVE COMMUNICATION","JANA PURI","NEW DELHI DEL","Plutus v1.49.3 MT HDFC",00,"00","","","","","101|100000|95000|5000|HDFC BANK","","","","08182015","184423",12345,9002,105

Instant EMI - Response CSV:

"","00","APPROVED","************2802","XXXX","CITI T%34 C 2$","MASTERCARD",89,33,"78784454",0,"PROCESSED","HDFC BANK"," ","000000000020",1,1,"LOVE COMMUNICATION","JANA PURI","NEW DELHI DEL","Plutus v1.49.3 MT HDFC",00,"00","","","","","102|3|HDFC BANK|100000|33946|11000","","","","08182015","184939",12345,9002,105

RESPONSE STRING (IN CASE OF DEPENDENT TRANSACTIONS)

In case of dependent transaction, lpszTransData parameter will be a simple error string in case of known errors or blank in case of unknown errors. On successful transaction, the return string is "APPROVED". The billing application should check for return "APPROVED" string for successful transactions.

In case of dependent transaction, lpszTransData parameter will be a simple error string in case of known errors or blank in case of unknown errors. On successful transaction, the return string is “APPROVED”. The billing application should check for return “APPROVED” string for successful transactions.

Sample response string for Reward Redemption transaction:

TX12345678,“7261A9”,”TRANSACTION SUCCESSFUL”,” ************2802”,”0406”,”RamSingh”,””,78,502,”30000001”,0,”PROCESSED”, ”LOYALTY
    REWARD”, ”000100090015607”,” 624615343002”,1, 1,” HPCL Area 18”,” Kamla Mills”,” Noida”,”v.01.00.00”,81,"10000","400.00","1000000","40000.00","","","","","","02012011","210403"


Sample response string for Sale with reward/cash:

TX12345678,“7261A9”,”TRANSACTION SUCCESSFUL”,” ************2802”,”0406”,”RamSingh”,””,78,502,”30000001”,0,”PROCESSED”, ”LOYALTY REWARD”, ”000100090015607”,” 624615343002”,1, 1,” HPCL Area 18”,” Kamla Mills”,” Noida”,”v.01.00.00”,81,"10000","400.00","1000000","40000.00","10000:1||10001:ICICI|10050:Pinemerchant store|10051:Rohini Sec 16|10100:2015/07/22|10101:11-27-23|10150:988888777777776|10151:98989898|10200:000010|10201:000099|10250:Sale with Reward|10251:Membership reward|10300: ************2802|10301:Swipe|10350:**/**|10351:VISA|10400:998831231|10401 :000000|10450:001212124433|10451:Rs.10000.00|10500:Rs. 100.00|10501:Rs. 120000.00|10600:130100.00|10601:32|10650:Rs. 8.00|10651:SIGN----------------------|10700:Ravi|10701:I AGREE TO PAY AS PER CARD ISSUER AGREEMENT|10751:****MERCHANT COPY****|10800:THANK YOU!|10801:pLUTUS V2.56 AXIS BANK|","","","","","02012011","210403"


Sample response for settlement:

,,,,,,,,,,,,,,,,,,,,,,,,,, 10000:1|10001:ICICI|10050:Pine merchant store|10851:Settlement Report|10051:Rohini Sec 12|10900:Bangalore|10100:07/01/2015|10101:12-12-23|10150:996545454541851|10151:65854178|10200:000010|10901:Details Report|10951:INVOICE NUMBER TRANSACTION TYPE AUTH CODE CARD NUMBER CARD TYPE AMOUNT|11000:10 SALE 000000 ************2802 VISA RS.1000.11|11001:SETTLEMENT COMPLETE|11050:3 RS902.97|11051:0 RS.0.00|11100:0 RS.0.00|11101: RS902.97|11150:0 RS.0.00|11151: RS.0.00|11200:RS.902.97,,,, ICICI,1,11159874,1,2542.00,0,0.00,,


Code Sample COM API

Given below are sample code snippets in C++ and VB for instantiating Plutus COM component and invoking COM API method.

Programming language: Visual C++ 7.0 (Unmanaged)

Application programming libraries: ATL/MFC

This is a sample VC++ code snippet which instantiates the Plutus exchange COM component and invokes the method to start a Plutus credit/debit online Sale transaction.


Visual C++
  Copy Code


// Import the Plutus Exchange type library
#import "C:\Plutus\Plutus\Plutus Exchange\release\Plutus Exchange.tlb"
using namespace PlutusExchangeLib;

// This method is invoked when 'Pay By Card' button is clicked
void CPineECRDlg::OnPayByCard()
{
        CString total, tracking_id;
        m_memoNumCtl.GetWindowText(tracking_id); // Get text in memo number control
        long lTrackingID = strtoul(tracking_id, 0, 10);
        m_totalAmtCtl.GetWindowText(total); // Get text in amount control
        ULONG totalAmt = strtoul(total, 0, 10);
        total.Format("%d", totalAmt*100L); // Compute amount in lowest currency unit

        if(totalAmt > 0) {
                IExchangeObjPtr pExchangeObj(__uuidof(ExchangeObj)); // Instantiate Plutus exchange COM object
                if(pExchangeObj == NULL) {
                        m_responseCtl.SetWindowText("Failed to instantiate COM object");
                        return;
                }
                CComBSTR bstrXML(100, total);
                HRESULT hRes = S_FALSE;
                try {
                        // Try launching card payment through Plutus
                        hRes = pExchangeObj->PL_TriggerTransaction(lTrackingID, &bstrXML);
                }
                catch (...) {
                        m_responseCtl.SetWindowText("Exception occurred in communication to Plutus application. Please retry");
                        return;
                }
                if(hRes == S_OK) {
                        USES_CONVERSION;
                        ::Beep(500, 100);
                        m_responseCtl.SetWindowText(OLE2T(bstrXML));
                        // Now parse the response string and do custom magic
                }
                else {
                        m_responseCtl.SetWindowText("Failed to process transaction. Please retry");
                }
        }
}


Programming language: Visual Basic 6.0 (Unmanaged)

Sample VB code for invoking Plutus from VB-based ECR application:


Visual Basic
  Copy Code


' This is called when "Pay by card" is pressed in ECR application
Private Sub Command1_Click()
        Dim strIO As String
        Dim lTrackingID As Long
        ' Add PlutusExchange v1.0 Type Library (TLB) as reference to the project
        Dim plutObj As New PlutusExchangeLib.ExchangeObj
        lTrackingID = 6 ' For testing, enter the scenario number as given in interchange spec doc
        strIO = "T123,156" ' This is input to Plutus -- base amount in paisa for Rs. 1.56 and ECR bill number: T123
        ' Bill number is only used for printing on Plutus charge slip
        plutObj.PL_TriggerTransaction lTrackingID, strIO
        MsgBox strIO, vbOKOnly, "Plutus Response String"
        ' Parse this string to extract Plutus response. Only indication of successful transaction authorization is a valid auth code returned in response
End Sub


Gift Voucher Activation

For Gift Voucher activation, an additional button must be provided by the billing application on the billing window. The flow is as follows:

1. Cashier opens billing window.
2. An additional button is available for Gift Voucher activation.
3. Cashier selects the Gift Voucher activation button for GV sales.
4. Billing Application invokes PL_TriggerTransaction API with lTxnType value as 4203.
5. Plutus prompts cashier to scan gift voucher number.
6. Cashier selects load button on Plutus screen.
7. Plutus activates voucher and informs Billing Application of success status and value of voucher activated in field 29 of response packet.
8. Billing application bills for GV article code (Now cancel button on billing should be deactivated).

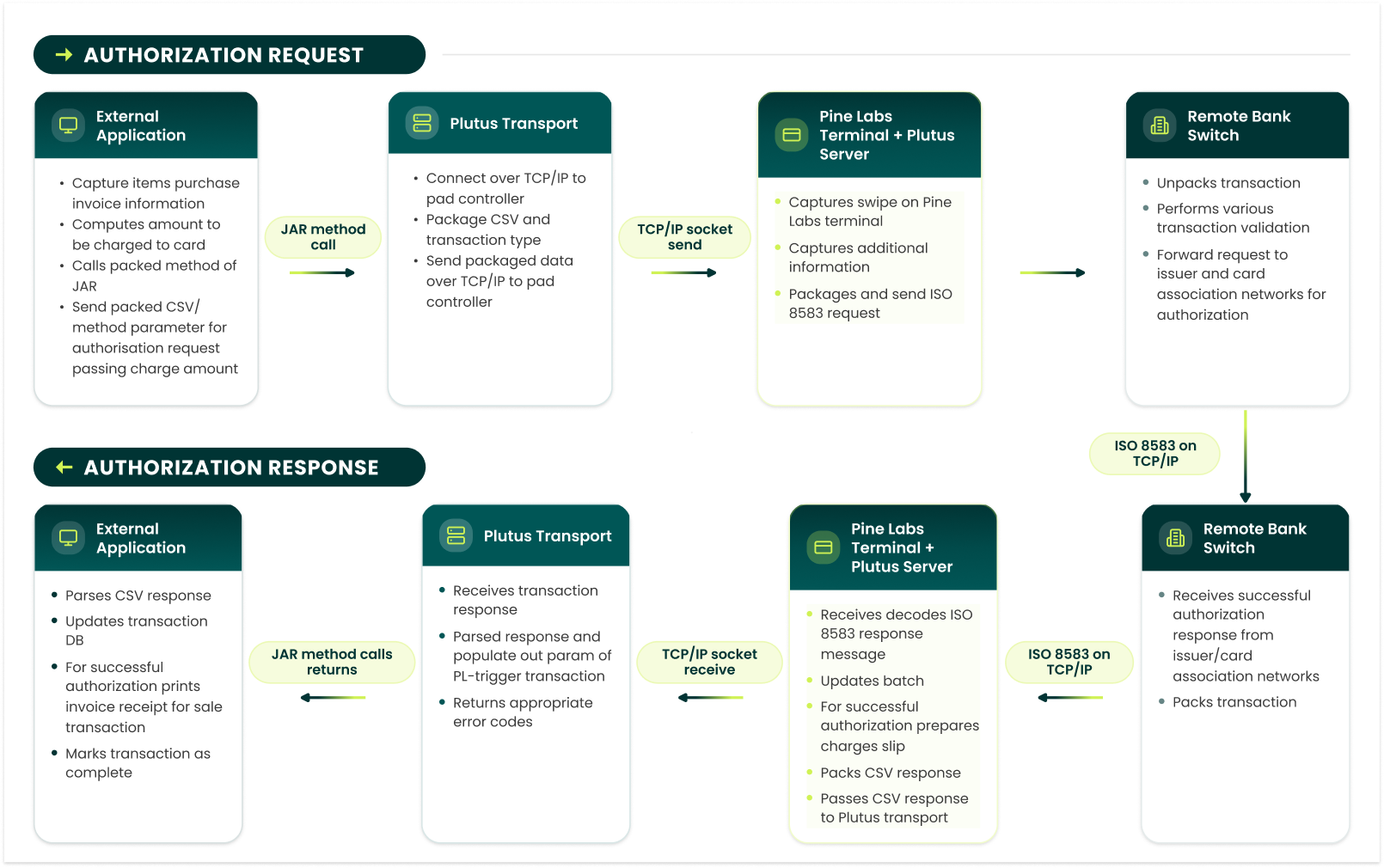

Integration With Plutus Over TCP/IP Socket

In this mode, the external billing application integrates with Plutus over TCP/IP socket. CSV exchange is used to launch a Plutus transaction authorization request and for exchanging information between the external application and Plutus. After transaction completion, response is sent to the external application as CSV over socket. For successfully authorized transactions, this response includes transaction approval code and card details. These details can be stored by the external application to link the EFT payment transaction with the billing sale transaction.

The following operations in Plutus can be launched either through the CSV over TCP/IP sockets (integrated mode) or through Plutus (standalone mode):

• Sale (purchase) transaction request (Independent transaction)
• Void (cancel) transaction request (Dependent transaction)
• Refund transaction request (Independent transaction)
• Adjust transaction request (Dependent transaction)
• Tip Adjust transaction request (Dependent transaction)
• Pre-Auth transaction request (Independent transaction)
• Sale Complete transaction request (Dependent transaction)
• All Pine 360 transactions

The operation Print Dump can only be launched in integration mode. This transaction type involves sending of print-dump in the request CSV over TCP/IP socket to be printed by EDC.

Transaction Workflow

The following diagram describes the process workflow for sale transactions in integrated mode.

The TCP/IP socket calls are synchronous, blocking for the external application.

Integration Development Process

Typical steps to integrate Plutus application with your application:

1. Verify system and integration requirements for Plutus.
2. Identify code segments in your application where Plutus payments need to be integrated (typically at checkout where amount is computed and customer opts for card payment).
3. Identify and implement DB schema changes required (if any) for storing authorization response data from Plutus.
4. Install PADController application on your development PC.
5. Implement code changes in your application to:
   • Create and connect a TCP/IP socket to PADController (listening on port 8082).
   • Invoke authorization request by sending CSV over socket and pass amount to be charged to card.
     Note: For split-sale transactions, only pass the amount to be charged to credit/debit card to Plutus.
   • Wait for response over socket, inspect returned CSV.
   • If transaction is declined/unsuccessful, take appropriate action as per your business process.
   • If transaction is approved, store response fields in DB for reconciliation and mark transaction as complete.
6. Test application code with Plutus.

Data Interchange Format

For specifying the transaction request type to Plutus application, the lTxnType value in the packed CSV is used. The values of the parameters are as defined below:

For exchanging request/response data between Plutus and external application, CSV is used. This string will consist of field values, as given in tables below, separated by commas.

Request String

The external application will set these values in the request CSV. (Refer to the original document for the full table of fields and their descriptions.)

Sample Request String:

For Sale Transaction: amount of Rs 99990.00

 4001,TX12345678,9999000,,,,,,,

Card Swipe will be accepted by Plutus Application.

For Sale Transaction (Manual Entry):

Please note, special permission from acquirer is required for accepting manual entry of cards.

4001,TX12345678,9999000,01,4129057681239198,0905,,FALSE,,,,

For Refund Transaction (Swipe Entry):

Please note, special permission from acquirer is required for accepting manual entry of cards.

TX12345678,9999000,01,,,,,,,,

For Adjust Transaction:

4005,TX12345678,9999000,01,,,000012,,,,,

Sample Request Strings

For Void Transaction:

4006,TX12345678,9999000,01,,,000013,,,,,

For Pine 360 Void Transaction:

4006,TX12345678,9999000,51,,,000013,,,,,

For Pre Auth Transaction (Swipe Entry):

4007,TX12345678,9999000,,,,,,,,,

For Sale Complete Transaction:

4008,TX12345678,9999000,01,,,000014,,,,,

For Loyalty Award Transaction: For Loyalty award on Rs 990.00

4208,TX12345678,99000,,,,,,,,,

For Loyalty Redeem Transaction: For Redeeming 99000 points

4209,TX12345678,99000,,,,,,,,,

For Loyalty Balance Enquiry Transaction:

4210,TX12345678,,,,,,,,,,

For Gift Card Load Transaction: For loading Rs 990.00 on the card

4211,TX12345678,99000,,,,,,,,,

For Gift Card Redeem Transaction: For redeeming Rs 990.00 from the card

4212,TX12345678,99000,,,,,,,,,

For Gift Card Balance Enquiry Transaction:

4213,TX12345678,,,,,,,,,,

For Pine360 Prepaid Card/Gift Voucher Load Transaction: For loading Rs 990.00

4202,TX12345678,99000,,,,,,,,,

For Pine360 Prepaid Card/Gift Voucher Redeem Transaction: For redeeming Rs 990.00

4203,TX12345678,99000,,,,,,,,,

For Pine360 Prepaid Card/Gift Voucher Balance Enquiry Transaction:

4204,TX12345678,,,,,,,,,,

For Gift Card Redeem Transaction: For redeeming Rs 990.00 from the mobile, where mobile number is captured in billing application

4212,TX12345678,99000,,9899999999,01,,,,,,,

For Gift Card Redeem Transaction: For redeeming Rs 990.00 through Barcode, where Barcode number is captured in billing application

4212,TX12345678,99000,,6747444848423409876,02,,,,,,,

For Fetch Loyalty Card Transaction:

4301,TX12345678,,,,,,,,,,

For Reward Redemption: Invoice amount of Rs 99990.00

4101,TX12345678,9999000,,,,,,,,

Card Swipe will be accepted by Plutus Application.

For Reward Void: Invoice amount of Rs 99990.00, EDC

4102,T1/1234567890,100,,,,,Operator,,,,9001,116

For Sale with reward Transaction: with sale amount Rs 99990.00 and reward amount Rs. 8888.00

4501,TX12345678,9999000,,,,,,,,,,,,888800

Card Swipe will be accepted by Plutus Application.

For Sale with cash Transaction: with sale amount Rs 99990.00 and cash amount Rs. 8888.00

4502,TX12345678,9999000,,,,,,,,,,,,888800

Card Swipe will be accepted by Plutus Application.

For settlement: Transaction type for settlement will be 6001. All fields will remain empty

6001,,,,,,,,,,,

Sending this over socket to PADController on port 8082 will initiate an authorization request transaction for the particular transaction type.

Response String (Independent Transaction)

The CSV received from Plutus will contain the response fields. (Refer to the original document for the full table of fields and their descriptions.)

Billing reference number,Approval Code,Host Response,Card Number,Expiration Date,Cardholder's Name,Card Type,Invoice Number/EDC ROC,Batch Number/EDC Batch ID,Terminal ID,Loyalty Points Awarded,Remark,Transaction Acquirer Name,Merchant ID,Retrieval Reference Number,Card Entry Mode,Print Cardholder's Name on receipt,Merchant Name,Merchant Address,Merchant City,Plutus Version,...


Sample Response String:

105,"7261A9","APPROVED"," ************2802","0406","AMITMOHAN","VISA",11,2,"30000001",1,"PROCESSED","Acquiring Bank 1","000100090015607"," 624615343002",1,1," HPCL Area 18"," Kamala Mills"," Noida","1.51 ICICI BANK",02


Sample response string for Reward Redemption transaction:

TX12345678,"7261A9","TRANSACTION SUCCESSFUL"," ************2802","0406","RamSingh","",78,502,"30000001",0,"PROCESSED","LOYALTY REWARD","000100090015607"," 624615343002",1,1," HPCL Area 18"," Kamla Mills"," Noida","v.01.00.00",81,"10000","400.00","1000000","40000.00","","","","","","02012011","210403",12345,9002,105


Instant Discount - Response CSV:

"","00","APPROVED","************2802","XXXX","CITI T%34 C 2$","MASTERCARD",86,33,"78784454",0,"PROCESSED","HDFC BANK"," ","000000000020",1,1,"LOVE COMMUNICATION","JANA PURI","NEW DELHI DEL","Plutus v1.49.3 MT HDFC",00,"00","","","","","101|100000|95000|5000|HDFC BANK","","","","08182015","184423",12345,9002,105


Instant EMI - Response CSV:

"","00","APPROVED","************2802","XXXX","CITI T%34 C 2$","MASTERCARD",89,33,"78784454",0,"PROCESSED","HDFC BANK"," ","000000000020",1,1,"LOVE COMMUNICATION","JANA PURI","NEW DELHI DEL","Plutus v1.49.3 MT HDFC",00,"00","","","","","102|3|HDFC BANK|100000|33946|11000","","","","08182015","184939",12345,9002,105


Response String (Dependent Transaction)

In case of dependent transaction, lpszTransData parameter will be a simple error string in case of known errors or blank in case of unknown errors. On successful transaction, the return string is APPROVED. The billing application should check for return APPROVED string for successful transactions.

Sample response string for Reward Redemption transaction:

TX12345678,"7261A9","TRANSACTION SUCCESSFUL"," ************2802","0406","RamSingh","",78,502,"30000001",0,"PROCESSED","LOYALTY REWARD","000100090015607"," 624615343002",1,1," HPCL Area 18"," Kamla Mills"," Noida","v.01.00.00",81,"10000","400.00","1000000","40000.00","","","","","","02012011","210403"


Sample response string for Sale with reward/cash:

TX12345678,"7261A9","TRANSACTION SUCCESSFUL"," ************2802","0406","RamSingh","",78,502,"30000001",0,"PROCESSED","LOYALTY REWARD","000100090015607","624615343002",1,1," HPCL Area 18"," Kamla Mills"," Noida","v.01.00.00",81,"10000","400.00","1000000","40000.00","10000:1||10001:ICICI|10050:Pine merchant store|10051:Rohini Sec 16|10100:2015/07/22|10101:11-27-23|10150:988888777777776|10151:98989898|10200:000010|10201:000099|10250:Sale with Reward|10251:Membership reward|10300: ************2802|10301:Swipe|10350:**/**|10351:VISA|10400:998831231|10401:000000|10450:001212124433|10451:Rs. 10000.00|10500:Rs. 100.00|10501:Rs. 120000.00|10600:130100.00|10601:32|10650:Rs. 8.00|10651:SIGN----------------------|10700:Ravi|10701:I AGREE TO PAY AS PER CARD ISSUER AGREEMENT|10751:****MERCHANT COPY****|10800:THANK YOU!|10801:pLUTUS V2.56 AXIS BANK|","","","","","02012011","210403"


Sample response for settlement:

,,,,,,,,,,,,,,,,,,,,,,,,,, 10000:1|10001:ICICI|10050:Pine merchant store|10851:Settlement Report|10051:Rohini Sec 12|10900:Bangalore|10100:07/01/2015|10101:12-12-23|10150:996545454541851|10151:65854178|10200:000010|10901:Details Report|10951:INVOICE NUMBER TRANSACTION TYPE AUTH CODE CARD NUMBER CARD TYPE AMOUNT|11000:10 SALE 000000 ************2802 VISA RS.1000.11|11001:SETTLEMENT COMPLETE|11050:3 RS902.97|11051:0 RS.0.00|11100:0 RS.0.00|11101: RS902.97|11150:0 RS.0.00|11151: RS.0.00|11200: RS.902.97,,,, ICICI,1,11159874,1,2542.00,0,0.00,,


Packet Structure For Data Transmission Over Socket

REQUEST PACKET STRUCTURE

Sample On-wire Request Packet:

HELPER DLL FOR TCP/IP

In addition to external billing application integrating with Plutus over TCP/IP socket, billing application can also do it using a normal DLL. This DLL in turn handles interactions with Plutus over TCP/IP socket.
Functions exposed by this DLL are:

bool DoTransaction(IN_PARAM chTxnType, IN_PARAM chBillingRefNo, IN_PARAM chAmount, IN_PARAM chBankCode, IN_PARAM chInvNum, IN_PARAM chTID, OUT_PARAM chAppCode, OUT_PARAM chHostResponse, OUT_PARAM chInvoiceNumber, OUT_PARAM chAcqBankCode, OUT_PARAM chAcqName, OUT_PARAM chCardNumber, OUT_PARAM chCardType, OUT_PARAM chErrDesc)
bool DoPlutusSale(IN_PARAM chBillingRefNo, IN_PARAM chAmount, OUT_PARAM chAppCode, OUT_PARAM chHostResponse, OUT_PARAM chInvoiceNumber, OUT_PARAM chAcqBankCode, OUT_PARAM chAcqName, OUT_PARAM chCardNumber, OUT_PARAM chCardType, OUT_PARAM chErrDesc)

These methods use IN_PARAM arguments and provide response in OUT_PARAM parameters. Please refer Data Interchange Formats section for detailed explanation of input and output arguments.

CODE SAMPLES TCP/IP SOCKET API

Given below are the sample code snippets in Java for creating a wire transaction byte stream from the CSV string.

// Java: Create wire transaction byte stream from CSV string for Plutus TCP/IP integration
private byte[] getTransmissionPacketForCentral(String csvData) {
    int iOffset = 0;
    byte[] msgBytes = csvData.getBytes();
    int iCSVLen = msgBytes.length;
    int finalMsgLen = iCSVLen + 7; // 2 bytes source, 2 bytes function code, 2 bytes length, 1 byte termination
    byte[] msgBytesExtra = new byte[finalMsgLen];

    // Source ID - 2 bytes
    msgBytesExtra[iOffset++] = 0x10;
    msgBytesExtra[iOffset++] = 0x00;

    // Function code or MTI - 2 bytes
    msgBytesExtra[iOffset++] = 0x09;
    msgBytesExtra[iOffset++] = (byte) 0x97;

    // Data length - 2 bytes (big endian)
    msgBytesExtra[iOffset++] = (byte) ((iCSVLen >> 8) & 0xFF);
    msgBytesExtra[iOffset++] = (byte) (iCSVLen & 0xFF);

    // Copy CSV data
    System.arraycopy(msgBytes, 0, msgBytesExtra, iOffset, msgBytes.length);
    iOffset += msgBytes.length;

    // Termination byte
    msgBytesExtra[iOffset] = (byte) 0xFF;

    System.out.println(byteArrayToHexString(msgBytesExtra));
    return msgBytesExtra;
}

public static String byteArrayToHexString(byte[] in) {
    if (in == null || in.length == 0) return null;
    String[] pseudo = {"0", "1", "2", "3", "4", "5", "6", "7", "8", "9", "A", "B", "C", "D", "E", "F"};
    StringBuilder out = new StringBuilder(in.length * 2);
    for (byte b : in) {
            out.append(pseudo[(b >> 4) & 0x0F]);
            out.append(pseudo[b & 0x0F]);
    }
    return out.toString();
}

JAVA SUPPORT FOR PLUTUS

Java support has been added to enable Plutus integration in cross-platform computing environment.
In addition to external billing application integrating with Plutus over TCP/IP socket, billing application can also do it using a JAR file. This JAR file in turn handles interactions with Plutus over TCP/IP socket.
For details of Integration over TCP/IP please refer to Integration with Plutus.

Authorization request can be launched by invocation of PL_TriggerTransaction() method of JAR. This method call is a synchronous blocking call – your application should wait up to 120 seconds for this call to time-out.

This method call accepts transaction input request parameters in the csvMessage in-out parameter. Post method completion, getCSV() method of CSVMessage can be used to get the value of transaction response string.
Moreover, Auxiliary methods are provided for simpler and speedy integration. These are:
PL_SALE_TXN, PL_VOID_TXN, PL_REFUND_TXN, PL_TIPADJUST_TXN, PL_PREAUTH_TXN and PL_SALECOMPLETE_TXN

Method signature:

    int PL_TriggerTransaction([in] long lTransactionType, [in,out] CSVMessage svMessage);


Here CSVMessage is the class having two methods to set and get CSV String.
public void setCSV([in] String sCSV);
public String getCSV();

Method signature:

    public int PL_SALE_TXN(String strBRN, long lAmount, CSVMessage csvMessage);


Post completion of transaction, response is in the form of CSV. For successfully authorized transactions, this response includes transaction approval code and card details. These details can be stored by the external application to link the EFT payment transaction with the billing sale transaction.
Following operations in Plutus can be launched by invocation methods of PlutusTransport JAR (integrated mode) or through the Plutus (standalone mode):

• Sale (purchase) transaction request (Independent transaction)
• Void (cancel) transaction request (Dependent transaction)
• Refund transaction request (Independent transaction)
• Adjust transaction request (Dependent transaction)
• Tip Adjust transaction request (Dependent transaction)
• Pre-Auth transaction request (Independent transaction)
• Sale Complete transaction request (Dependent transaction)

The operation Print Dump can only be launched in integration mode. This transaction type involves sending of print-dump in the request CSV for printing by EDC.
The above transactions can also be triggered directly in Manual Swipe mode by passing Billing Reference Number and Amount for independent transactions like Sale, Refund and Pre-Auth and Billing Reference Number, Amount, Invoice Number and Bank code for dependent transaction like Void, Tip Adjust, Sale Complete using methods given below.

Following diagram describes the process workflow followed for sale transactions in integrated mode. The PlutusTransport’s method calls are synchronous, blocking for the external application.

INTEGRATION DEVELOPMENT PROCESS

This will be same as Integration Development Process for integration with Plutus (as explained above) except change of step 5 which is described as follows:

1. Set up to use PlutusTransport JAR.
2. Invoke authorization request method by calling required method and pass amount to be charged to card
   Note: For split-sale transactions, only pass the amount to be charged to credit / debit card to Plutus
3. Wait for method call to return, check returned error code, if successful, inspect returned CSV.
4. If transaction is declined / unsuccessful, take appropriate action as per your application business process
5. If transaction is approved, store response fields in DB for reconciliation and mark transaction as complete

DATA INTERCHANGE FORMAT

This will be same as Data Interchange Format described above.

JAVA CODE SAMPLE

Given below are sample code snippets in Java for instantiating and invoking PlutusTransport JAR methods.

Programming language: Java

Calling PL_TriggerTransaction

    /** This is a sample Java code snippet which sets CSV String of CSVMessage object and passes
     * it along with transaction type to PlutusTransport’s PL_TriggerTransaction method.
     * The response CSV is returned back in csvMessage object. */
    public void doSaleTransactionByTriggerTransaction() {
            Thread thread = new Thread() {
                    public void run() {
                            // Transaction type for SALE
                            long iTransactionType = 4001;
                            // sample CSV String for SALE
                            String strCSV = "1234,10000,01,,,5678,TRUE,,,,";
                            // instantiate CSVMessage object and set CSV String in it.
                            CSVMessage csvMessage = new CSVMessage();
                            csvMessage.setCSV(strCSV);
                            // instantiate PlutusTransport object
                            PlutusTransport plutusTransport = new PlutusTransport();
                            // call to method PL_TriggerTransaction with Transaction type and CSVMessage object
                            // iResponse have response code
                            int iResponse = plutusTransport.PL_TriggerTransaction(iTransactionType, csvMessage);
                            // strCSVResponse have response string
                            String strCSVResponse = csvMessage.getCSV();
                    }
            };
            thread.start();
    }


Calling PL_SALE_TXN method:

    /** This is a sample Java code snippet which sends required Billing Reference Number and Amount
     * to the SALE Transaction and passes it to PlutusTransport’s PL_SALE_TXN method. The response
     * CSV is returned back in csvMessage object.
     */
    public void doSaleTransactionBySaleTransaction() {
            Thread thread = new Thread() {
                    public void run() {
                            // Transaction type for SALE
                            long iTransactionType = 4001;
                            // Sample Billing Reference Number for SALE Transaction
                            String strBRN = "1989";
                            // Sample Amount in paisa for SALE Transaction
                            long lAmount = 2500;
                            // instantiate CSVMessage object and set CSV String in it.
                            CSVMessage csvMessage = new CSVMessage();
                            csvMessage.setCSV("");
                            // instantiate PlutusTransport object
                            PlutusTransport plutusTransport = new PlutusTransport();
                            // call to method PL_SALE_TXN with Billing Reference Number, Amount and CSVMessage object
                            // iResponse have response code
                            int iResponse = plutusTransport.PL_SALE_TXN(strBRN, lAmount, csvMessage);
                            // strCSVResponse have response string
                            String strCSVResponse = csvMessage.getCSV();
                    }
            };
            thread.start();
    }


Reward Transaction Support

Reward Transaction Integration to be supported on Plutus.

Redemption:

1. Billing App to send Total Invoice Amount and transaction Type (4101).
2. Plutus Terminal to get Card Swipe and to ask for Amount to redeem based on available points and amount.

Sample Request CSV:

• COM CSV:

  TX12345678,9999000,,,,,,,

• TCP CSV:

  4101,TX12345678,9999000,,,,,,,

3. Customer to confirm the amount to redeem.
4. On confirmation of redemption, response CSV to be sent back to Billing App.

Sample Response CSV:

TX12345678,"7261A9","TRANSACTION SUCCESSFUL","************2802","0406","RamSingh","",78,502,"30000001",0,"PROCESSED","LOYALTY REWARD","000100090015607","624615343002",1,1,"HPCL Area 18","Kamla Mills","Noida","v.01.00.00",81,"10000","400.00","1000000","40000.00","","","","","","02012011","210403"

Void:

1. Billing App will send Batch ID, ROC, Amount and transaction Type (4102) in Request CSV, for Transaction which has to be voided.

Sample Request CSV:

• COM CSV:

  TX12345678,9999000,,,,,,,9002,201

• TCP CSV:

  4102,TX12345678,9999000,01,,,,,,,9002,201

2. On Successful void of transaction, response CSV will be sent back to Billing App.

Sample Response CSV:

TX12345678,"7261A9","TRANSACTION SUCCESSFUL","************2802","0406","RamSingh","",78,502,"30000001",0,"PROCESSED","LOYALTY REWARD","000100090015607","624615343002",1,1,"HPCL Area 18","Kamla Mills","Noida","v.01.00.00",81,"10000","400.00","1000000","40000.00","","","","","","02012011","210403"

Support For Payback Transaction

Payback Transaction Integration to be supported on Plutus.

Redemption:

1. Billing App to send principle value (Card Number or mobile number) and corresponding principle classifier (1 or 3) and transaction Type (4402).
2. Plutus Terminal to get Card Swipe or Mobile number (in case principle value is not provided) and to ask for Points to redeem based on available points.
3. Response CSV to be sent back to Billing App.

Sample Request CSV:

• COM CSV:

  TX12345678,,,,,,,

• TCP CSV:

  4402,TX12345678,,,9900112233,3,,,,

Sample Response CSV:

TX12345678,"7261A9","APPROVED","************2802","XXXX","RamSingh","",101,9001,"30000001",0,"PROCESSED","PAYBACK","000100090015607","624615343002",1,1,"HPCL Area 18","Kamla Mills","Noida","v.01.00.00",91," ","40000","","50000","90000","9401150099532409","","","","02012011","210403"

Void:

1. Billing App will send Batch ID, ROC, Refund Points and transaction Type (4403) in Request CSV for Transaction which has to be voided.
2. On Successful void of transaction, response CSV will be sent back to Billing App.

Sample Request CSV:

• COM CSV:

  TX12345678,1000,,,,,,,9002,201

• TCP CSV:

  4403,TX12345678,1000,,,,,,,,9002,201

Sample Response CSV:

APPROVED

Prepaid Changes in Payback

There will be a change in request CSV to incorporate IS_PREPAID flag and threshold amount field. 10th (RFU1) and 11th (RFU2) field in request CSV are reserved for IS_PREPAID flag and Threshold amount for Prepaid point redemption. If RFU1 = 1, then we will pass new Prepaid related fields.

Sample Request CSV:

4402,TX12345678,12,,8084162025,3,,,,1,10000,,,,,,

Where 10th field is a prepaid flag. And 11th field is a threshold amount for pre-paid.

Sample Response CSV:

TX12345678,"10381","APPROVED","************7707","XXXX","","PAYBACK","106","9133","64200395","0","APPROVED","PAYBACK","000000090000235","0|10381","1","0","new store2709","hhhhhh","Delhi","v.01.00.00",91,"","0|12","","66135|99761","66234|100000","9401150158677707","","","","12212018","182858"

Below is the list of fields added in response CSV separated by pipe symbol if prepaid flag 1 (fields are added at the right side of pipe):

• Field 15 – 0|10381: 0-CoalitionOrderId, 10381-PrepaidOrderId
• Field 24 – 0|12: 0-CoaliationPointBlocked, 12-PrepaidPointsBlocked
• Field 26 – 66135|99761: 66135-Available coalition Balance, 99761-Available Prepaid Balance
• Field 27 – 66234|100000: 66234-Total coalition Balance, 100000-Total Prepaid Balance

Note:

1. Void and void reversal is not supported.
2. Minimum amount to be redeem is 1 from prepaid and coalition.
3. Balance enquiry can be performed only for coalition.

Integration Support For Add-On Transaction

The request CSV will be the same as it is used in case of normal sale transaction as the any Addon program is qualified in normal sale only. Integrated CSV transaction is applicable for Add-on programs.

In any case integrated mode transaction response CSV is to be modified to accommodate information regarding Add-on programs. RFU1 (field 28) field of response CSV will contain information in piped formation.

Example response CSV for Instant Discount and Instant EMI:

"T1/1234567890","000000","APPROVED","************4514","XXXX","AXIS T%34 C 2$","VISA",81,11,"abc12345",0,"PROCESSED","AXIS BANK","888888888888888","000000000020",1,1,"PIN@POSWITH AXIS","AMIT KUMAR","HAPUR","Plutus v2.56 AXIS BANK",05,"00","","","","","101|25000|20000|5000|AXIS BANK|;102|3|AXIS BANK|588000|199933|12000","","","","04072015","174420"

• ; character is used to distinguish between different programs if multiple program types are present on POS.
• | character will separate between different parameters of applied add-on program.
• First field will be the Program type followed by other information specific to the program.

Example program types:

• 101 – Instant Discount
• 102 – Instant EMI
• 103 – Nx Reward
• 104 – Targeted Promotion
• 112 – Visit Based Offer
• 113 – Add-on Convenience Fee

The Information to be passed in response CSV:

• Instant EMI:
  • Program Type
  • EMI Tenure
  • Issuer Bank
  • Loan Principal Amount
  • EMI Amount
  • Cashback
• Instant Discount:
  • Program Type
  • Input Amount
  • Authorization Amount
  • Discount Amount
  • Issuer Name

Integration Support For Visit Based Offer

The request CSV will be the same as it is used in case of normal sale transaction as any Add-on program is qualified in normal sale only. Integrated CSV transaction is applicable for Visit Based Offer programs.

Sample Response CSV:

"T1/1234567890","00","APPROVED","************5476","XXXX","HDFC T%34 C 2$","VISA",225,11,"88119015",0,"PROCESSED","HDFC BANK"," ","000000000020",1,1,"LOVE COMMUNICATION","JANA PURI","NEW DELHI DEL ","Plutus v1.49.3 MT HDFC BANK",01,"00","","","","","112|400000|395000|5000|HDFC|100.00","","","","05282015","192034"

• ; character is used to distinguish between different programs if multiple program types are present on POS.
• | character will separate between different parameters of applied add-on program.

First field will be the Program type followed by other information specific to the program.
Example: 112 – Visits Based Offer

Information to be passed in response CSV for Visits Based Offer:

• Program Type
• Entered Amount
• Auth Amount
• Discount/Cashback
• Issuer Bank
• Reward Point

Third Party Wallet Integration

In integrated mode, wallet payments transactions can be launched directly from external billing / retail applications – avoiding the need for dual amount input. Also, the transaction response details are passed to the external application. Transaction completion can be used to automatically link the EFT payment transaction with the billing sale transaction for reconciliation.

DATA INTERCHANGE FORMAT

For specifying the transaction request type to Plutus application, the lTxnType in parameter on PL_TriggerTransaction() method call is used. The value of some such parameters are as defined below:

For exchanging request / response data between the Plutus and external application, lpszTransData in-out parameter in PL_TriggerTransaction() method call is used.

These values of this parameter are in comma-separated value (CSV) string format. This string will consist of field values as mentioned in tables below and separated by commas.

REQUEST STRING

Following is the format of the lpszTransData in-parameter expected by PL_TriggerTransaction() method. The external application will set these values. Position in CSV Field Name Date Type Range / Length Description Sample

RESPONSE STRING (IN CASE OF INDEPENDENT TRANSACTIONS)

Following is the format of the lpszTransData out-parameter that can be expected after PL_TriggerTransaction() method completes. Plutus will set these values.

Sample request string:

For transaction of amount of Rs 1.00

• CASE 1: If billing application just triggers the transaction and without wallet type / wallet input identifier/wallet ID data
  TX12345678,100,,,,,,
  Note: wallet program type, wallet input identifier and wallet ID data will be captured on terminal.
• CASE 2: If wallet program type is present in csv string
  TX12345678,100,101,
  Jio Money program type id = 101
  Freecharge program type id = 103
  Note: in this case wallet input identifier and wallet ID data will be captured on terminal
• CASE 3: if Type of Wallet Identifier is present in
  TX12345678,100,101,,03
  Note: In this case we have information that this is a transaction for Jio Money wallet and entry is swipe, hence terminal will prompt for swipe.

Sample Response String:

"123","048668","APPROVED","************7669","9807","CUSTOMER/JIO MONEY","WALLET","108","9022","10001140","","","JIO MONEY","100001000000098","014897000526","1","0","RLENOVOStore","Sector 62","NOIDA","v1.0.0","101","","","","","","","100","","","11052015","193848"

PhonePe Wallet & With GST QR Integration

In integrated mode, PhonePe transactions can be launched directly from external billing/retail applications – avoiding the need for dual amount input. Also, the transaction response details are passed to the external application. Transaction completion can be used to automatically link the EFT payment transaction with the billing sale transaction for reconciliation.

TRANSACTION TYPES

REQUEST STRING

Following is the format of the lpszTransData in-parameter expected by PL_TriggerTransaction() method. The external application will set these values.

SALE CHARGE REQUEST

Sample request strings:

• CASE 1: If billing application just triggers the transaction without wallet program id / wallet identifier data


  5102,TX12345678,100,,,,,,

  Note: Wallet program type, wallet identifier (only for PhonePe if paymode is Mobile only or Mobile and QR both) will be captured on terminal.
•
  CASE 2: If wallet program id is present in csv string


  5102,TX12345678,100,105,

  PhonePe program type id = 105
  Note: in this case, wallet identifier will be captured on terminal only for PhonePe if pay mode is Mobile only or Mobile and QR both.

Sample Response String: There will be 2 cases:

• CASE 1: Sale charge request is initiated, and sale completion is pending. The case occurs for
  • PhonePe Async mode, which is two-step process Sale charge request followed by Get Status request.
  • PhonePe Sync mode when Charge Completion is failed due to any reason.

  "1245","","TRANSACTION INITIATED, CHECK GET STATUS!","******6400"," ","","WALLET","231","9102","ABCD123466","","","PHONE PE","M2306160483220675579140","","","0","varunstore","jaipur","ADILABAD","v1.0.0","105","","", "","","","","2500","","","04112017","161835"

• CASE 2: Sale charge is complete through callback URL in one step (PhonePe sync mode).

  "1245","005436","SUCCESS","******6400"," ","","WALLET","231","9102","ABCD123466","","","PHONE PE","M2306160483220675579140","","","0","varunstore","jaipur","ADILABAD","v1.0.0","105","","", "","","","","2500","","","04112017","161835"

VOID OF SALE CHARGE

• CASE 1: If billing application just triggers the void with only Transaction type and amount


  5104,TX12345678,100,,,,,,

• CASE 2: If billing application provides batch ID and ROC along with amount and transaction type


  5104,1245,100,,,,,,,,,9023,119,,,,,,,,,,

  Note: In this case the transaction will proceed for void and no terminal capture is required.

Sample Response String:

"1245","005436","SUCCESS","******6400"," ","","","260","9102","ABCD123466","","","PHONE PE","M2306160483220675579140","","","0","varunstore","jaipur","ADILABAD","v1.0.0","105","","", "","","","","3900","","","04132017","143003"

GET STATUS OF SALE CHARGE

• CASE 1: If billing application just triggers the get status with only Transaction type and amount


  5112,TX12345678,100,,,,,,


  Note: In this case, there will be a menu selection prompted on terminal with values: Get Last transaction and Get Any transaction. 2 cases will be present
  • Case A: User selects Get Last transaction. In this case, no further terminal interaction is required and get status is done
  • Case B: User selects Get Any transaction. In this case, Batch ID and ROC will be captured on the terminal.
• CASE 2: If billing application provides batch ID and ROC along with amount and transaction type


  5112,1245,100,,,,,,,,,9023,119,,,,,,,,,,


  Note: In this case the transaction will proceed for get status and no terminal capture is required.

Sample Response String:

"1245","005436","APPROVED","******6400"," ","","WALLET","259","9102","ABCD123466","","","PHONE PE","M2306160483220675579140","","","0","varunstore","jaipur","ADILABAD","v1.0.0","105","","", "","","","","3900","","","04132017","143003"

Sodexo Integration

In integrated mode, Sodexo payment transactions can be launched directly from external billing/retail applications – avoiding the need for dual amount input. Also, the transaction response details are passed to the external application. Transaction completion can be used to automatically link the EFT payment transaction with the billing sale transaction for reconciliation.

TRANSACTION TYPES

REQUEST STRING

Sending this over socket to PADController on port 8082 will initiate an authorization request transaction for the particular transaction type.
Sample Sodexo Request string (with first 22 fields) for an approved transaction:

5106,T000150100000332,7385,,,,,,,,,,,,,,,,,

RESPONSE STRING (IN CASE OF INDEPENDENT TRANSACTIONS)

Sample Sodexo Sale Request String:

5106,T000150100000332,100,,,,,,,,,,,,,,,,,

Sample Sodexo Sale Response String:

"T000150100000332","126936","APPROVED","************0065","XXXX"," ","","101","9127","70000116","0","APPROVED","SODEXO","2341","160111000069","1","1","TestStoreVinit","mayur vihar 3","MEERUT","v.01.00.00","301","","","","","","","","","","07012016","111218"

RESPONSE STRING (IN CASE OF DEPENDENT TRANSACTIONS)

Sample Sodexo void Request CSV:

5107,T000150100000334,3060,,,,,,,,,9001,101,,,,,,

Sample Sodexo Void Response:

"T000150100000334","120008","APPROVED","************0065","XXXX"," ","","105","9127","70000116","0","APPROVED","SODEXO","2341","160111000071","1","1","TestStoreVinit","mayur vihar 3","MEERUT","v.01.00.00","301","","","","","","","","","","07012016","112930"

Integration for Partial Pay By Point

• Field-22 (Acquiring bank code):
  • 81 - Loyalty Reward
  • 82 - Aimia
  • 83 - Amex Reward
• Field-23: Reward Redeemed Amount
• Field-24: Reward Redeemed Point

Sample Request and Response CSV

Request CSV:

4001,TX12345678,9000,,,,,,,

Response CSV: Partial pay by point (Sale + Reward) For Amex

"T1/1234567890","00","APPROVED","374245*****0001","XXXX","AMEX TESTCARD","AMEX 003",316,23,"55000030",0,"PROCESSED","AMERICAN EXPRESS","9795818996 ","000000000020",2,1,"PINE LABS PVT.LTD.","Testing Server","NOIDA - INDIA","Plutus v2.0 AMEX ",03,"250000","10000.00","0","0.00","","","","","","08042016","150433"

Response CSV: Partial pay by point (Sale + Reward) For Loyalty Reward

"123","123456","APPROVED","************5858","XXXX","NIKESH KUMAR /","VISA-PIN",83,23,"PL000013",0,"PROCESSED","SBI BANK","PL0000000000013","000000047040",1,1,"NOIDA(NCR)","PineLabs Pvt Ltd","Sector-62","Plutus v10.1.1 SBI",06,"75056","3002.24","0","0.01","","","","","","08042016","151131"

Response CSV: Full Redeem (Reward Only) For Amex Reward

"T1/1234567890","188371","APPROVED","***********0001","","AMEX TESTCARD ","","102","9501","50000252","","TXN APPROVED BY AMEX HOST","REWARDS","9820359248","","","1","teststore02","Pine Labs Unitech Infospace","NOIDA","v.01.00.00",83,"50000","2000","","","","","","","","08042016","142822"

Response CSV: Full Redeem (Reward Only) For Loyalty Reward

"123","00022560","APPROVED","************5858","","NIKESH KUMAR ","","110","9891","99000001","","TXN APPROVED BY HOST","REWARDS","1638","","","1","Nikesh Test new","Pinelabs Pvt Ltd","NOIDA","v.01.00.00",81,"50000","2000.00","75056","3002.25","","","","","","08042016","150809"

Void of Partial Pay By Point

In case of partial pay by point transaction of both sale and reward, request and response will be same as normal void (Txn type 4006).

Request CSV for Void Transaction:

4006,TX12345678,9999000,01,,,000013,,,,,

Response string will be "APPROVED" for successful transaction.

The void of Full Redeem (only reward) transaction can be performed through Txn types 4006 (Normal sale-void) and 4102 (Reward-Void).

Request CSV for Txn type (4006):

4006,TX12345678,500,83,,,212,,,,,9525,212,,

Request CSV for Txn type (4102):

4102,TX12345678,5,,,,,,,,,9145,104,,,,,

Void Response CSV for Full Redeem (only Reward):

"5678","000000","APPROVED","374245*****0001","","","","110","9597","50000128","","TXN APPROVED BY AMEX HOST","REWARDS","9820359248","","","1","Abhishek store1","Rohini","Delhi","v.01.00.00",83,"500","20","","","","","","","","08052016","102343"

UPI/BHARAT QR Integration

In integrated mode, UPI/BHARAT QR transactions can be launched directly from external billing / retail applications – avoiding the need for dual amount input. Also, the transaction response details are passed to the external application. Transaction completion can be used to automatically link the EFT payment transaction with the billing transaction for reconciliation.

TRANSACTION TYPES

REQUEST STRING

Following is the format of the request CSV. The external application will set these values.

UPI SALE WITH GST DETAILS (ADDITIONAL PARAMETERS)

Additional Parameters for UPI Sale with GST Details

The following additional parameters are used for UPI Sale transactions with GST details:

REQUEST String

Example CSV Request for UPI Sale (with GST):

5120,TXN123456,100,,,,,,,,,,,,,,,,,,,,,,,,,,,2019-06-11T13:21:50+05:30,09AABCU9603R112,CGST:08.45|SGST:08.45,

RESPONSE STRING (IN CASE OF INDEPENDENT TRANSACTIONS)

Following is the format of the CSV received. Plutus will set these values.

UPI/BHARAT QR SALE CHARGE REQUEST

Sample Request Strings:

• CASE 1: If billing application just triggers the transaction without UPI/BHARAT QR program id
  UPI Sale Request:

  5120,TX12345678,100,,,,,,,


  BHARAT QR Sale request:

  5123,TX12345678,100,,,,,,,

• CASE 2: UPI/BHARAT QR program id is present in csv string
  UPI Sale Request:

  5120,TX12345678,100,2,,,,,,,


  BHARAT QR Sale request:

  5123,TX12345678,100,1,,,,,,,

Sample Response String: There will be 2 cases:

• Case 1: Sale charge request is initiated, and sale completion is pending.


  "1245","","TRANSACTION INITIATED, CHECK GET STATUS","******6400"," ","","UPI","231","9102","ABCD123466","","","UPI AXIS","M2306160483220675579140","","","0","varunstore","jaipur","ADILABAD","v1.0.0","3","","","","","","","2500","","","04112017","161835"

• Case 2: Sale charge is complete through callback URL in one step


  "1245","002195","SUCCESS",""," ","","UPI","231","9102","ABCD123466","","","UPI AXIS","M2306160483220675579140","","","0","varunstore","jaipur","ADILABAD","v1.0.0","3","","","","","","","2500","","","04112017","161835"

VOID UPI/BHARAT QR SALE CHARGE

• Case 1: If billing application just triggers the void with only Transaction type and amount


  5121,TX12345678,100,,,,,,,

• Case 2: If billing application provides batch ID and ROC along with amount and transaction type


  5121,1245,100,,,,,,,,,9023,119,,,,,,,,,,


  Note: In this case the transaction will proceed for void and no terminal capture is required.

Sample Response String:

"1245","005432","SUCCESS","******6400"," ","","","260","9102","ABCD123466","","","AXIS UPI","M2306160483220675579140","","","0","varunstore","jaipur","ADILABAD","v1.0.0","3","","","","","","","3900","","","04132017","143003"

GET STATUS OF UPI/BHARAT QR SALE CHARGE

• Case 1: If billing application just triggers the get status with only Transaction type and amount


  5122,TX12345678,100,,,,,,,


  Note: In this case, there will be a menu selection prompted on terminal with values: Get Last transaction and Get Any transaction. 2 cases will be present
  Case A: User selects Get Last transaction. In this case, no further terminal interaction is required and get status is done
  Case B: User selects Get Any transaction. In this case, Batch ID and ROC will be captured on the terminal.
• Case 2: If billing application provides batch ID and ROC along with amount and transaction type


  5122,1245,100,,,,,,,,,9023,119,,,,,,,,,,


  Note: In this case the transaction will proceed to get status and no terminal input is required.

Sample Response String:

"1234","002214","Success","","","","UPI","130","9854","70000002","0","Success","AXIS UPI","PINELABS","","","0","Abhishek store1","Rohini","Delhi","v1.0.0","3","","","","","","","567","","","05092017","131947"

Paytm Integration

Paytm transactions can be launched directly from external billing / retail applications – avoiding the need for dual amount input. Also, the transaction response details are passed to the external application.

TRANSACTION TYPES

CASE 1: Paytm sale request (Transaction done on call back URL)

Request CSV:

5125,T000940100000002,3900,,,,,,,,

Response CSV:

"T000940100000002","000020","APPROVED","","","","PayTm","187","9290","89562314","0","APPROVED","PayTM QR","casreu55137050570131","1011RQ8LJPMUNMF","","0","PAYMENT SK","Kali Paltan Mandir Cantt Meerut Uttar ","MEERUT","v1.0.0","10","","","","","","","3900","","","07272018","181907"

CASE 2: Paytm sale request using QR code (if the payment successful on app and time out occurs on EDC machine)

Request CSV:

5125,T000940100000019,7800,,,,,,,,,

Response CSV:

"T000940100000019","","TRANSACTION INITIATED CHECK GET STATUS","","","","PayTm","102","9236","89562314","0","TRANSACTION INITIATED CHECK GET STATUS","PayTM QR","casreu55137050570131","","","0","JulyRelease2017","noida","NOIDA","v1.0.0","10","","","","","","","7800","","","08022018","135212"

Sample Response String for Get Status:

"","000044","APPROVED","","","","PayTm","103","9236","89562314","0","APPROVED","PayTM QR","casreu55137050570131","101XDD7BJQD1HUM","","0","JulyRelease2017","noida","NOIDA","v1.0.0","10","","","","","","","7800","","","08022018","135743"

Airtel Bank Integration

The requirement is to enable Airtel Payment Bank Integration through PineLabs solution. Customer will enter their mobile number and receive an OTP from the bank. Customer will enter the OTP on the terminal and transaction will be completed after successful response received from the Host.

TRANSACTION TYPES

Sample Request CSV:

5127,T000940100000019,5000,,,,,,,,,

Sample Response CSV of a Successful Airtel Bank transaction:

"123","000054","APPROVED","","","","Airtel Bank","106","9023","85003","0","APPROVED","AIRTEL BANK","180704","478270","","0","Tata Starbucks Store","Pine Labs Pvt Ltd Noida","Delhi","v1.0.0","11","","","","","","","100","","","09062018","151123"

Sample Response CSV of a Failed Airtel Bank transaction:

"123","","AIRTEL BANK OTP VERIFICATION FAILED","","","","Airtel Bank","105","9023","85003","0","AIRTEL BANK OTP VERIFICATION FAILED","AIRTEL BANK","180704","","","0","Tata Starbucks Store","Pine Labs Pvt Ltd Noida","Delhi","v1.0.0","11","","","","","","","100","","","09062018","150952"

Google Pay Integration (As an Issuer)

In the integrated mode, Google Pay transactions can be initiated directly from external billing / retail applications – avoiding the need for dual amount input. Also the transaction response details are passed to the external application. Transaction completion can be used to automatically link the EFT payment transaction with the billing transaction for reconciliation.

TRANSACTION TYPES

Sale Transaction

Request CSV for Google Pay:

5126,293,100,,9582001423,01,,,,

Response CSV for Google Pay:

"293","000263","APPROVED","nikesh09hcl@okhdfcbank","","","GOOGLE PAY","142","9601","30007181","0","APPROVED","AXIS UPI","PINELAPROD0071047","826312121822","","0","JulyRelease2017","noida","NOIDA","v1.0.0","3","","","","","","","100","","","09202018","123248","30007581000263","100","25353","","9601|142|293"

Void Transactions

Request CSV for Google Pay:

5121,293,100,,,,,,,,,9601,142,,

Response CSV for Google Pay Void:

"293","000264","APPROVED","nikesh09hcl@okhdfcbank","","","GOOGLE PAY","145","9601","30007181","0","APPROVED","AXIS UPI","PINELAPROD0071047","826312121822","","0","JulyRelease2017","noida","NOIDA","v1.0.0","3","","","","","","","100","","","09202018","123659","30007581000264","100","5121","","9601|142|293"

GET STATUS OF UPI SALE CHARGE

CASE 1: If billing application just triggers the get status with only Transaction type and amount

5122,TX12345678,100,,,,,,,,

Note: In this case, there will be a menu selection prompted on terminal with values: Get Last transaction and Get Any transaction. 2 cases will be present
Case A: User selects Get Last transaction. In this case, no further terminal interaction is required and get status is done
Case B: User selects Get Any transaction. In this case, Batch ID and ROC will be captured on the terminal.

CASE 2: If billing application provides batch ID and ROC along with amount and transaction type

5122,1245,100,,,,,,,,,9023,119,,,,,,,,,,

Note: In this case the transaction will proceed to get status and no terminal input is required.

Sample Response String:

"1234","002214","Success","","","","UPI","130","9854","70000002","0","Success","AXIS UPI","PINELABS","","","0","Abhishek store1","Rohini","Delhi","v1.0.0","3","","","","","","","567","","","05092017","131947"

PayPal QR Integration

In integrated mode, PAYPAL QR transactions can be launched directly from external billing / retail applications –avoiding the need for dual amount input. Also, the transaction response details are passed to the external application. Transaction completion can be used to automatically link the EFT payment transaction with the billing transaction for reconciliation.

TRANSACTION TYPES

Sample request strings:

CASE 1: If billing application just triggers the transaction without PAYPAL QR program id

5554,TX12345678,100,,,,,,,,

Sample Response String: There will be 2 cases:

CASE 1: Sale charge request is initiated, and sale completion is pending.

"TX12345678","","TRANSACTION INITIATED CHECK GET STATUS","","","","","101","9038","16000001","0","TRANSACTION INITIATED CHECK GET STATUS","PayPal","","","","0","LUXMI SALES CORPORATION MOGA PUNJAB","Chakki Wali Gali Near Bus Stand","MOGA","v1.0.0","16","","","","","","","100","","","05132019","145801"

CASE 2: Sale charge is complete through callback URL in one step

"TX12345678","500064","APPROVED","","","","","108","9038","16000001","0","APPROVED","PayPal","","W218592K268780T","","0","LUXMI SALES CORPORATION MOGA PUNJAB","Chakki Wali Gali Near Bus Stand","MOGA","v1.0.0","16","","","","","","","100","","","05132019","152852"

GET STATUS OF PAYPAL QR SALE CHARGE

CASE 1: If billing application just triggers the get status with only Transaction type and amount

5122,TX12345678,100,,,,,,,,

Note: In this case status of only Last transaction will be given by above CSV. No terminal input is required

CASE 2: If billing application provides batch ID and ROC along with amount and transaction type

5122,1245,100,,,,,,,,,9296,107,,,,,,,,,,

Note: In this case the transaction will proceed to get status and no terminal input is required.

Sample Response String:

"1245","500065","APPROVED","","","","PayPal","111","9038","16000001","0","APPROVED","PayPal","","B16414AK632243T","","0","LUXMI SALES CORPORATION MOGA PUNJAB","Chakki Wali Gali Near Bus Stand","MOGA","v1.0.0","16","","","","","","","100","","","05132019","154544"

COD Transaction Type For Integration Mode

TRANSACTION TYPES

Request CSV:

• COD Sale:

  4507,test123,12000,51215,,,,,,,,,,

• COD Void:

  4508,Test123,12000,,,,,,,,,9327,131

Response CSV:

• COD Sale:

  test123,131,APPROVED,,,,,131,9327,116493,,,,,,,,,,,,,,,,,,,,,,08072019,111257,131,12000,4507

• COD VOID:

  Test123,132,APPROVED,,,,,132,9327,116493,,,,,,,,,,,,,,,,,,,,,,08072019,111848,132,12000,4508

Amazon Pay Integration

In integrated mode, Amazon Pay transactions can be launched directly from external billing / retail applications – avoiding the need for dual amount input. Also, the transaction response details are passed to the external application. Transaction completion can be used to automatically link the EFT payment transaction with the billing transaction for reconciliation.

TRANSACTION TYPES

Request CSV Fields

Sample request strings:

• CASE 1: If billing application just triggers the transaction without Amazon Pay program id
  Amazon Pay request:

  5129,TX123,2100,,9455160742,01,,,,,,,

Sample Response String: There will be 2 cases:

• CASE 1: Sale charge request is initiated, and sale completion is pending.
  Response CSV:


  "TX123","","TRANSACTION INITIATED CHECK GET STATUS","","","","","117","9034","17000063","0","TRANSACTION INITIATED CHECK GET STATUS","AmazonPay","A313HYWQMSX6CT","","","0","Jafri_Store_New_3","Jafri_Store_New_3","NOIDA","v1.0.0","17","","","","","","","100","","","11222019","125505","17000063000508","100","5129","","9034|117|TX123"

• CASE 2: Sale charge is complete through callback URL in one step
  Response CSV:


  "TX123","000088","APPROVED","","","","","108","9373","","0","APPROVED","AmazonPay","A2XMNOQAN8MC64","6198876-2720619","","0","Aqib Store2","NCR","Delhi","v1.0.0","17","","","","","","","2100","","","07092019","125725","17000001000088","","","","9373|108|TX123"

GET STATUS OF Amazon Pay SALE CHARGE

• CASE 1: If billing application just triggers the get status with only Transaction type and amount


  5122,TX12345678,100,,,,,,,


  Note: In this case status of only Last transaction will be given by above CSV. No terminal input is required
• CASE 2: If billing application provides batch ID and ROC along with amount and transaction type


  5122,1245,100,,,,,,,,,9296,108,,,,,,,,,,


  Note: In this case the transaction will proceed to get status and no terminal input is required.

Sample Response String:

"TX123","","DUPLICATE BILL","","","","","108","9373","","0","DUPLICATE BILL","AmazonPay","A2XMNOQAN8MC64","3283095-3209453","","0","Aqib Store2","NCR","Delhi","v1.0.0","17","","","","","","","12100","","","07092019","125105","17000001000087","","","","9373|104|"

EMI Integration – As Single Transaction Type

Request String

5005,123,3000000,,,,,,,,,,,,,,,,,,,,,,,,

Response String for Brand EMI

"123","123456","APPROVED","************4976","XXXX","TEST ME FOURTYNINE","VISA",134,24,"24444444",0,"PROCESSED","SBI BANK","02PLA0000008530","000000047040",2,1,"SAPNA FASHION","SAPNA FASHION","THANE ","Plutus v10.1.1 SBI",06,"","","","","","105|6|BOB Debit|28896000|5000240|1104000","","","","12162020","193437"

Response String for Bank EMI

"123","00","APPROVED","************4976","XXXX","TEST ME FOURTYNINE","MAESTRO",446,51,"56567568",0,"PROCESSED","HDFC BANK"," ","000000000020",2,1,"LOVE COMMUNICATION","JANA PURI","NEW DELHI DEL ","Plutus v1.49.3 MT HDFC BANK",01,"","","","","","106|12|BOB Debit|2999426|267900|0|4752|6466|244|SAMSUNG MONITOR|45347845|LCD|9764579|","","","","12222020","145346"

Bank EMI Integration

Request String

5101,TX12345678,100000,,,,,,,,,,

Response String

"TX12345678","00","APPROVED","************9857","XXXX","SANDEEP KUMAR /","MASTERCARD",32,0,"98938493",0,"PROCESSED","ICICI BANK"," ","000000000020",2,1,"LOVE COMMUNICATION","JANAKPURI","NEW DELHI DEL ","Plutus v2.12 MT",02,"","","","","","105|3|HDFC BANK|100000|33890|0","","","","09172020","112627","2681531","100000","5101","CARD_CHIP"

Response CSV Field Descriptions

Brand EMI Integration

Request String

5002,TX12345678,100000,,,,,,,,,,,999113881|7|463|106|753|3|233|29489583|9900336400|,,,

• Mandatory Parameters Details:
  • 5002 - Brand EMI transaction type provided by Pine Labs
  • TX12345678 - Billing reference Number sent by Billing system
  • 100000 - Amount in paisa
• EMI Related Parameters:
  • 999113881 - Pine Labs Product code
  • 7 - Brand OEM ID provided by Pine Labs
  • 463 - Pine Labs Rule Id
  • 106 - Pine Labs Rule Type ID
  • 753 - Pine Labs Scheme Code
  • 3 - Tenure
  • 233 - Pine Labs Issuer ID
  • 29489583 - IMEI number/SERIAL NO
  • 9900336400 - Mobile number
• Above EMI related fields can be passed from merchant billing system. Most of the parameters are optional; if billing system does not pass these parameters, then EDC will invoke a screen to enter or select details manually.
• Fields like Rule ID, Rule Type ID, Scheme Code and Issuer ID are NA for merchants who do not have Scheme information.

Response String

TX12345678","000000","APPROVED","************8079","XXXX","1220001611900305 /","MASTERCARD",2,1,"52145625",0,"PROCESSED","AXIS BANK","037011001791708","000000000020",2,1,"RWAMRITSAR","RWAMRITSAR","AMRITSAR","Plutus v2.55 AXIS BANK",05,"","","","","","106|3|HDFC BANK|1000000|337787|0|1037|1612|7|Apple iPhone|999113876|MT9E2HN/A|568282|9911072148","","","","01102020","134418"

Paper POS Integration

In Integration mode, PAPER POS charge slip can be launched directly from external billing / retail applications – avoiding the need for multiple time selection of transaction charge slip printing. Also, the transaction response details are passed to the external application. Transaction charge slip completion can be used to automatically link the EFT payment transaction with the billing application transaction.

Transaction Types

Parameters Used in Paper POS

• Txn Hat – Paper Pos Print/Reprint Transaction Hat
• Billing Reference Number – Merchant Invoice number
• Amount – Transaction Amount
• Host Type – Unused
• Entry Mode Data : PaperPos ID
• Entry Mode : 5 (Last Y Mins Txns), 6 (Last N Txns)

Request String

CASE 1: If billing application just triggers the request without PAPER POS id

5568,TXN123,100,,,,,,

Note: In this case, there will be a menu selection prompted on terminal with values: Last Y Minutes Txns/Last N Minutes txns. 2 cases will be present:

• Case A: User selects Last Y minutes transaction. Only required Transaction selection should be done under option.
• Case B: User selects Last N Number transaction. Only required Transaction selection should be done under option.

CASE 2: PAPER POS id is present in csv string

5568,TXN123,100,,728583,5,,,

CSV Field Description

Response String

There will be 3 cases:

• CASE 1: Paper Pos Print charge slip with entry mode 5 response successful.


  "txn123","000005","APPROVED","9560312525@ybl","","","UPI","126","9075","41303201","0","APPROVED","","HDFC000000174318","005832684752","","0","PRABHAT","Pinelabs","NOIDA","v1.0.0","19","","","","","","","100","","","02272020","163815"

• CASE 2: Paper Pos Print charge slip with entry mode 6 response successful.


  "txn002","000004","APPROVED","8602579721@ybl","","","UPI","114","9075","41303201","0","APPROVED","","HDFC000000174318","005822103166","","0","PRABHAT","Pinelabs","NOIDA","v1.0.0","19","","","","","","","100","","","02272020"

• CASE 3: Paper Pos Print charge slip response when “TXN NOT FOUND”.


  txn002","","TXN NOT FOUND","","","","UPI","107","9075","","0","TXN NOT FOUND","","","","","0","PRABHAT","Pinelabs","NOIDA","v1.0.0","19","","","","","","","100","","","02272020","115242"

Response CSV Field Description

TWID Integration

In integrated mode, Twid transactions can be launched directly from external billing / retail applications – avoiding the need for dual amount input. Also, the transaction response details are passed to the external application. Transaction completion can be used to automatically link the EFT payment transaction with the billing transaction for reconciliation.

Transaction Types

Sample Requests and Responses

CASE 1: Twid sale request (Transaction done on call back URL)

5131,TX123,100,,8853941659,01,,,,,,,

"TX123","000124","APPROVED","","","","","102","9116","210000016","0","APPROVED","twid","14790","36916","","0","Harpreet store","tttttt87iuyo","SRIDUNGARGARH","v1.0.0","21","","","","","","","100","","","07072020","192551","210000016000124","","","","9116|102|TX123"

CASE 2: Twid sale request (if the payment successful on app and time out occurs on EDC machine)

5131,TX123,100,,8853941659,01,,,,,,,

"TX123","","TRANSACTION INITIATED CHECK GET STATUS","","","","","105","9116","210000016","0","TRANSACTION INITIATED CHECK GET STATUS","twid","14790","","","0","Harpreet store","tttttt87iuyo","SRIDUNGARGARH","v1.0.0","21","","","","","","","100","","","07072020","203630","210000016000127","","","","9116|105|TX123"

Sample Response String for Get Status:

5122,1245,100,,,,,,,,,9023,119,,,,,,,,,,

"1245","000128","APPROVED","","","","","114","9116","210000016","0","APPROVED","twid","14790","36919","","0","Harpreet store","tttttt87iuyo","SRIDUNGARGARH","v1.0.0","21","","","","","","","100","","","07072020","210014","210000016000128","","","","9116|113|TX123"

CASE 3: Twid Void request

5121,TX123,100,,,,,,,,,9108,106,,,,,,,,,,

"TX123","000129","APPROVED","","","","","115","9116","210000016","0","APPROVED","twid","14790","36919","","0","Harpreet store","tttttt87iuyo","SRIDUNGARGARH","v1.0.0","21","","","","","","","100","","","07072020","210251","210000016000129","","","","9116|114|TX123"

Sale With/Without Instant Discount

Earlier, when we take payment with the card which is not eligible for instant discount then the device displayed the message as “Instant discount not applicable. Initiate Normal Sale” and the transaction was not completed. So, new transaction type has been included to complete the Sale transaction irrespective of whether instant discount is applicable or not.

Request String

4603,Test123,300000,,,,,,,,,,,,,101,,,,,,

Response String – When Discount Applicable

"Test123","00","APPROVED","************4976","XXXX","TEST ME FOURTYNINE","MAESTRO",79,16,"56567568",0,"PROCESSED","HDFC BANK"," ","000000000020",2,1,"LOVE COMMUNICATION","JANA PURI","NEW DELHI DEL ","Plutus v1.49.3 MT HDFC BANK",01,"","","","","","101|300000|260000|40000|ICICI Debit","","","","09092020","142904"

Response String – When Discount Not Applicable

"Test123","00","APPROVED","************4636","XXXX","UDAY CHOPRA /","MAESTRO",88,16,"56567568",0,"PROCESSED","HDFC BANK"," ","000000000020",2,1,"LOVE COMMUNICATION","JANA PURI","NEW DELHI DEL ","Plutus v1.49.3 MT HDFC BANK",01,"","","","","","","","","","09092020","160916"

Qwikcilver Redemption

This transaction has been included to accept QC Gift Card on Pine Labs terminal.

Request String

4205,TXN12345,10000,,,,,,,,,,,,,,,,,,,,,,,,,

Response String – With Card No.

"TXN12345","23644330","APPROVED","************2918","","","","1","92","5038189","","Success","PINE 360","689","000005942311","","1","","","","Plutus v1.0.0 PINE 360",51,"","","","","","","","23644330","","09042020","131344"

Response String – With Card Swipe

"TXN12345","23641377","APPROVED","9999999999932918","","************2918","","1","91","5038189","","Success","PINE 360","689","000005942304","","1","","","","Plutus v1.0.0 PINE 360",51,"","","","","","52|;9999999999932918=000099909684355?|","","23641377","","09042020","120201"

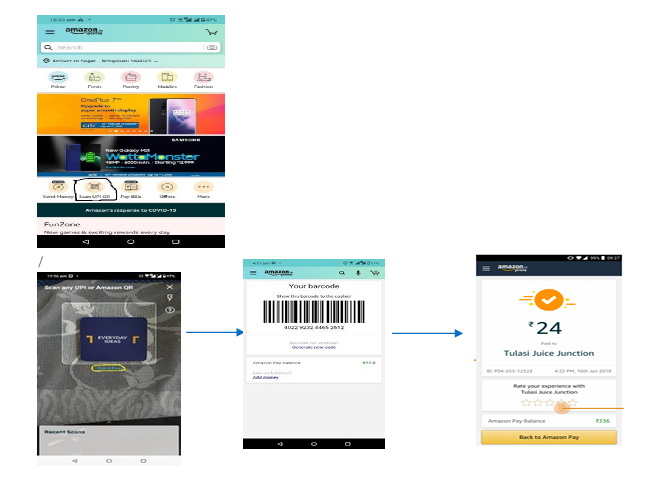

AmazonPay Barcode

AmazonPay has extended offer Bar-Code based payment mode to merchants in addition to the existing mobile number/QR Flow.

Integrated Transaction Flow

• Merchant Billing App can use their Scanner to scan the Bar Code and send the Bar Code value along with the amount to PL terminal.
• Merchant Billing App send the amount only and PL terminal is used to scan the Bar Code.
• Merchant Billing App send the amount only and PL terminal is used to take the 16-digit Input for the Bar Code

Request String – 16 Digit Code

5129,TX123,60,,4011621861603583,2,,,,,,,

Request String – Bar Code

5129,TX123,60,,,2,,,,,,,

Response String

"TX123","000505","APPROVED","","","","","112","9363","17000016","0","APPROVED","AmazonPay","A2GI92ROAM509H","7937454-7234578","","0","Utkarsh Merchant 1 Store 1","Indirapuram","GHAZIABAD","v1.0.0","17","","","","","","","60","","","09092020","105841","19000077000505","","","","9363|112|TX123"

Sale - Cardless Bank & Brand EMI (ICICI, HDFC & Federal Bank)

A set of privileged customers can avail Cardless EMI on pre-approved bases by Bank. Cashier will have an option to choose Cardless EMI option and select the issuer to have Bank and Brand EMI facilities. With the help of Mobile Number validation and other product details post tenure selection, Bank will confirm for eligibility check by validating OTP and PAN with Success response.

Request String – Cardless Bank EMI

5003,Test123,1200000,,,,,,,,,,

Response String - Cardless Bank EMI

"Test123","00","SUCCESS","*****00027","","","","",9076,292721,"","SUCCESS","Cardless EMI by ICICI Bank",1065,"00","","","PAYMENT SK","Kali Paltan Mandir Cantt Meerut Uttar Pradesh","","",307,"","","","","","105|6|ICICI CARDLESS|1200000|205282|0","","000001200000","","201102","172733","00292721009076000121","1200000","",""

Request String – Cardless Brand EMI

5004,Test123,1200000,,,,,,,,,,

Response String - Cardless Brand EMI

"Test123","00","SUCCESS","*****00013","","","","",9076,292721,"","SUCCESS","Cardless EMI by ICICI Bank",1065,"00","","","PAYMENT SK","Kali Paltan Mandir Cantt Meerut Uttar Pradesh","","",307,"","","","","","106|3|ICICI CARDLESS|1199000|405676|1000|278523|296566|75|Samsung Mob|154382|SM-G935FTKDINS|8785|6000000013","","000001200000","","201102","140705","00292721009076000108","1200000","",""

Void - Cardless Bank & Brand EMI (Federal Bank)

This section supports for Void Cardless Bank & Brand EMI for Federal Bank only.

Request String - Without Batch ID & ROC

5031,TXN1226,240000,,,,,,,,,,

Request String - With Batch ID & ROC

5031,TXN1226,240000,,,,,,,,,9224,187,,,,,,,,,,

Response String - Cardless Brand EMI

"TXN1226","0","Success","************2802","","","","",189,9224,292717,"","Success","Cardless EMI by FEDERAL Bank",40605,"00","","","krishstore1","noida","noida2","",309,"","","","","","","","000000240000","","210716","141848","00292717009224000187","240000","",""

Giftiicon – Gift Code Redemption

Giftiicon is an Instant social gifting application based out of Korea. They have integrated with Pine Labs to enable their users to redeem gift coupons on POS terminals. New transaction type has been added in both standalone and integration (currently Wired) mode to support this feature. If the invoice amount is more than the Voucher amount, a banking Sale transaction will be performed for the rest of the amount.

Request String - Without Barcode

4113,TXN12552,10000,,,,,,,,,,,,,,,,,,,,,,,,,

Request String - With Barcode

4113,TXN12552,10000,,,,,,,Y7N8-5YES-UMAR,02,,,,,,,,,,,,,,,,,

Field 9th and 10th are used for Barcode ID and Barcode Type (02) [considering Txn Type at 0th position].

Response String - Only with Giftiicon

"TXN12552","HE6SXQ","APPROVED"," ************2802"," ","","WALLET","107","9072","23042021","","","GIFTIICON","11251","GC_Q6YX67HE6SXQ","","0","Merchant_AKS","test test","BANGALORE","v1.0.0","110","8900","","","","","QRYS-TPW8-U0AB|Q6YX67HE6SXQ|GC_Q6YX67HE6SXQ","5000","","","07122021","130345"

Response String - Giftiicon + Bank Sale

"TXN12552","123456","APPROVED","************2802","XXXX","AMAN KANT SHUKLA /","VISA",87,17,"PR049091",0,"PROCESSED","RBL BANK","02PLA0000008530","000000047040",2,1,"SAPNA FASHION","SAPNA FASHION","THANE ","Plutus v10.1.1 RBL",26,"8900","0","0","0","",S2K1-L3QT-ZYSJ|1SZKNBD2KAUT|GC_1SZKNBD2KAUT,15000,"","","07122021","130006"

HDFC Flexipay – POS (Pay Later)

HDFC Flexipay POS is a new payment mode under Pine Labs BNPL offering in which customers will get options to choose 15,30,60 and 90 days tenure. HDFC bank’s Debit card customer can avail this facility and pay the amount with interest based on their convenient tenure. In this feature, HDFC Flexipay offers 15 days No Cost Interest to their customers.

Request String

5030,TXN123,100000,,,,,,,,,,

Response String

"TXN123","00","APPROVED","************2802","XXXX","NITIN PODDAR /","MAESTRO",329,54,"24324325",0,"PROCESSED","HDFC BANK"," ","000000000020",2,1,"LOVE COMMUNICATION","JANA PURI","NEW DELHI DEL ","Plutus v1.49.3 MT HDFC BANK",01,"","","","","","119|15|HDFC Debit|99668|100000|332","","","","06302021","185035"

Magic PIN

Magic PIN Is a company that rewards customer for sharing the shopping details via charge slip and enrolling through card on their platform. The same rewards can be redeemed at the merchants. The merchant in return pays a marketing fee for on the total invoice amount. Magic PIN is now looking to enable POS redemption through Pine labs.

Request String

Magic PIN Sale:

4109,Test4321,1200,,,,,,,,,

Magic PIN Void:

4110,Test4321,1200,,,,,,,,,

Response String

"Test4321","00","APPROVED","************0110","XXXX","ABHISHEK TENGURIA /","VISA",113,28,"ICICI041",0,"PROCESSED","ICICI BANK"," ","000000000020",2,1,"LOVE COMMUNICATION","JANAKPURI","NEW DELHI DEL ","Plutus v2.12 MT ICICI BANK",02,"120","1.20","49365","493.65","","","","","","03102022","125350"

Zest Money

This section will define the request/response packet under integrated mode.
New transaction Type to handle in Integration Mode:

• Invoice Sale (5367)
• Product Sale (5370)
• Void (5369)

Request String

5367,TXN1234,500000,,,,,,,
5370,TXN1234,500000,,,,,,,
5369,TXN1234,500000,,,,,,,,,,,147,,,,,,,

For Product Sale, OEM for entity needs to be configured using PCUI. New CSV Request/Response are created for new transaction type.

Response String

Bank EMI (Invoice Sale)

TXN1234,00,APPROVED,******7890,,,,147,9008,292386,,INVOICE SALE,ZESTMONEY,7263,,Entry Mode : 3,,Utkarsh Merchant 1 Store 1,Indirapuram,GHAZIABAD,NBFCV1Details(50795|104500|10months|52426|5000.00|1660.28|242.50),APPROVED,01252022,123555,500000

Brand EMI (Product Sale)

TXN1234,00,APPROVED,******7890,,,,177,9008,292386,,PRODUCT SALE,ZESTMONEY,7263,,Entry Mode : 3,,Utkarsh Merchant 1 Store 1,Indirapuram,GHAZIABAD,NBFCV1Details(20007|180000|3 months|171691|5000.00|353.00|0.00),APPROVED,01272022,131052,500000

Glossary of Terms
